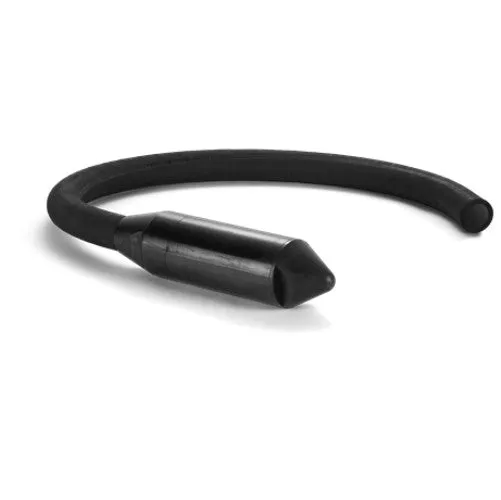

Husqvarna PV is a series of powerful, durable and economic pneumatic concrete vibrators. Powered and cooled by compressed air it is ideal for vibrating walls and columns. The easy-to-twist ball stop handle delivers maximum efficiency and helps avoid air leakage and power losses. The absence of moving parts in the hose reduces hand/arm vibrations and extends service life.
| PNEUMATIC VIBRATORS | PV 107 | PV 87 | PV 77 | PV 67 |
| Part number | 967859408 | 967859407 | 967859406 | 967859405 |
| Tube diameter, in. (mm) | 4 (108) | 3.4 (87) | 3.0 (77) | 2.6 (67) |
| Tube length, in. (mm) | 16.3 (415) | 16.1 (410) | 15.7 (398) | 14.3 (365) |
| Total weight, lbs (kg) | 50.7 (23) | 39.7 (18) | 37.5 (17) | 24.2 (11) |
| Hose length, ft (m) | 5 (1.5) | 5 (1.5) | 6.6 (2) | 6.6 (2) |
| Frequency, vpm | 15 000 | 15 900 | 16 000 | 17 500 |
| Working pressure, psi (Bar) | 87 (6) | 87 (6) | 87 (6) | 87 (6) |
| Air consumption cfm (m3/min) | 67.0 (1.9) | 63.5 (1.6) | 45.9 (1.3) | 35.3 (1.0) |
| Weighted effective acceleration, m/s² | 2.91 | 1.95 | 2.4 | 2.1 |
| Sound power Lpa dB(A) | 96.3 | 94 | 98 | 94 |
| PNEUMATIC VIBRATORS | PV 47 | PV 37 | PV 27 | |
| Part number | 967859403 | 967859402 | 967859401 | |
| Tube diameter, in. (mm) | 1.9 (47) | 1.5 (36) | 1.1 (26) | |
| Tube length, in. (mm) | 12.4 (316) | 10.5 (267) | 10.0 (254) | |
| Total weight, lbs (kg) | 15.5 (7) | 11 (5) | 8.8 (4) | |
| Hose length, ft (m) | 6.6 (2) | 6.6 (2) | 6.6 (2) | |
| Frequency, vpm | 18 000 | 19 000 | 21 000 | |
| Working pressure, psi (Bar) | 87 (6) | 87 (6) | 87 (6) | |
| Air consumption cfm (m3/min) | 24.7 (0.7) | 16.2 (0.46) | 12.7 (0.36) | |
| Weighted effective acceleration, m/s² | 2.4 | 1 | 0.5 | |
| Sound power Lpa dB(A) | 95.8 | 89.2 | 84.5 |
