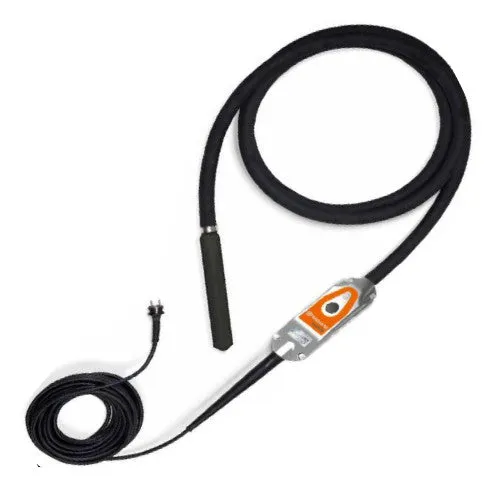

regular, single-phase wall socket with the appropriate voltage will suffice as power source. Just plug in and start working straight away.
The high centrifugal force, stable speed and high amplitude
contribute to efficient concrete vibration with fewer dips. 49 ft
(15 m) 16 ft (5 m) of hose enable exceptional reach around the
job.
The integrated frequency converter is well protected against
shock, overload and overheating. All electronics are built into the
streamlined aluminum box with one push of the ON/OFF button. A
LED indicator shows the working status of the vibrator and alerts the
operator if something needs to be checked.
| ELECTRONIC VIBRATORS | SMART 56 | SMART 48 | SMART 40 |
| Tube diameter, in. (mm) | 2.20 (56) | 1.90 (48) | 1.58 (40) |
| Tube length, in. (mm) | 15.0 (380) | 13.8 (350) | 12.6 (320) |
| Total weight, lbs (kg) | 35.1 (14.7) | 32.4 (14.7) | 28.9 (13.1) |
| Hose length, ft (m) | 16.4 (5) | 16.4 (5) | 16.4 (5) |
| Cable length, ft (m) | 49.2 (15) | 49.2 (15) | 49.2 (15) |
| Voltage, V–p–Hz | 115V–1–50/60Hz | 115V–1–50/60Hz | 115V–1–50/60Hz |
| Amperage @ 115V-1-50/60Hz, A | 12.8 | 9 | 5 |
| Frequency, vpm | 12 000 | 12 000 | 12 000 |
| Weighted effective acceleration, m/s² | 2.47 | 5.87 | 4.62 |
| Sound power Lpa dB(A) | 83 | 80 | 75 |
